Ozonation via Membrane Contactors

14025/TUB: Ozonation via Membrane Contactors

Background

Synthetic substances like pharmaceuticals or plasticizers find their way into waste water and influence or even harm humans and the environment. The use of ozone is one method to destroy those contaminants, other ones are bacteria or viruses solved in water – however, all these methods afford high costs and a lot or energy, so they are not applicable in each case.

Technical Description

Therefore, it was an aim of our development to provide an ozonation method for waste water that can save energy and resources to increase its applicability. This resulted in novel membrane reactors with special fluid distribution devices that allow a bubble-free immission of ozoniferous gases into the liquid phase.

Moreover, this system allows to reuse the oxygen that remains within the gas phase after contacting the ozoniferous gas with the liquid phase.

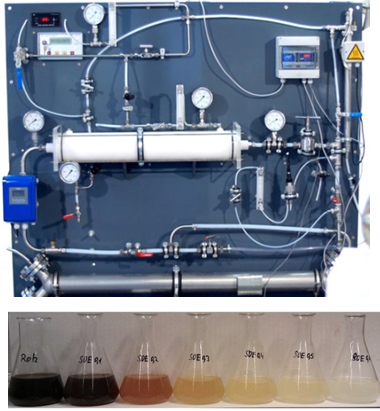

The developed membrane contactor implemented in the mini plant (upper picture) and the results of cleaning waste water with ozone in increasing concentrations (lower picture)



Anwendungsmöglichkeiten / Possible applications:

In contrast to conventional ozone reactors that are currently used for the ozonation of drinking water, of process water and of waste water, the novel systems can reduce space requirements and operational costs. Moreover, it allows to treat waste waters that tend to strong foaming without any problems.

Interested? Contact Us! Interested? Contact Us!
Show all techoffers Vorteile / Benefits:
  • Modular structure à system is easily scalable to the requested capacity
  • Achieved plug flow enables a better ozone utilization
  • Reduced space requirements
Entwicklungsstand / Development status:

Prototype, Mini Plant

Reifegrad / Maturity level:

1

Schlagworte / Tags:
membrane reactor, ozonation, ozone, waste water, water treatment
Schutzrechte / Property rights:

DE, EP, UC, CA, CN, JP, IN - pending

Patentinhaber / Patent holder:

Technische Universität Berlin

Möglichkeiten der Zusammenarbeit / Possible cooperation:
  • R&D Cooperation
  • Patent Purchase
  • Licensing



Ansprechpartnerin / Contact Person:
Ina Krüger
Lizenzmanagerin

Tel.: 030 314-75916
ina.krueger@tu-berlin.de
Zentrum für geistiges Eigentum
