Chip-integrated Optical Sensor

14029/TUB: Chip-integrated Optical Sensor

Background

Sensors with the features: portable, low-power, label-free, real-time, compact, high sensitivity, high-throughput, and cost-effective are highly attractive because they can be used in a wide range of fields such as environmental monitoring, homeland security, biomedicine, biochemistry and pharmacy.

Moreover, a label-free sensor would enable direct biochemical and chemical detection, which it is generally desirable due to its non-intrusive nature, in contrast to sensors with labelling compounds.

Technical Description

Since several sensors have already are known to the state of the art, it was the aim of our invention to develop a label-free, integrated HCG-based optical sensor that can be manufactured at low costs. Moreover, it was also an issue of the invention to be able to detect biomolecular, biochemical and chemical interactions with this sensor. The developed sensor provides very specific properties due to its special geometry, which allows the transformation of the whole or of only a part of a normal or of an oblique incidence wave into the in-plane direction.

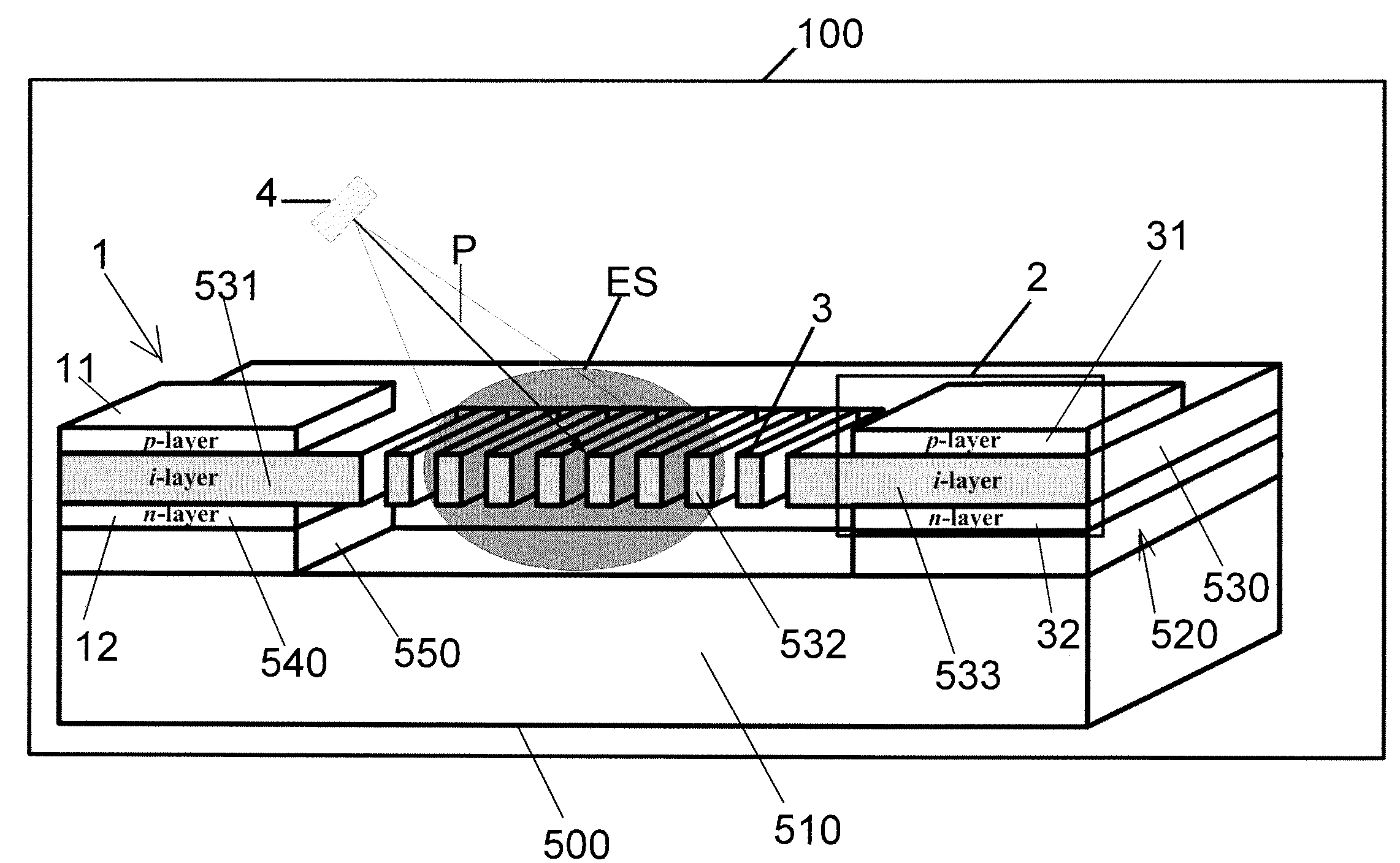

Exemplary embodiment of an optical sensor (100) for detecting chemical, biochemical or biological substances

Anwendungsmöglichkeiten / Possible applications:

Environmental monitoring, homeland security, biomedicine, biochemistry, pharmacy

Interested? Contact Us! Interested? Contact Us!
Show all techoffers Vorteile / Benefits:
  • Use of cheap and available VCSEL device possible
  • Monolithically integration of VCSEL as optical source possible
  • No expensive “classic” optics needed
  • Function given by the finite-size HCG only
  • Easy integrated detection due to the redirection of light
  • Very high sensitivity
  • Multiple detections possible integrated in an array operating with identical VCSELs
Entwicklungsstand / Development status:

Prototype

Reifegrad / Maturity level:

1

Schlagworte / Tags:
biosensor, label-free, laser, light, optical source, sensor, VCSEL
Schutzrechte / Property rights:

US - pending

Patentinhaber / Patent holder:

Technische Universität Berlin

Möglichkeiten der Zusammenarbeit / Possible cooperation:
  • R&D Cooperation
  • Patent Purchase
  • Licensing
